WEITAI Hydraulic

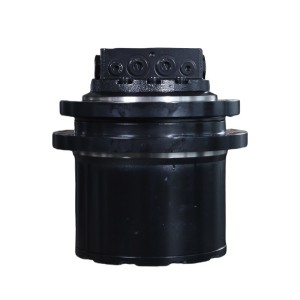

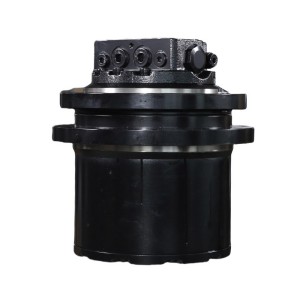

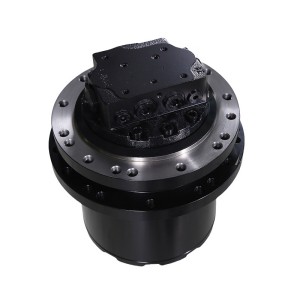

WTM06J Travel Motor
WEITAI WTM Series Final Drive is consisted of Swash-plate Piston Motor integrated with high strength planetary gearbox. It is widely used for Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.
Key Features
2-speed swash-plate piston motor.
Integrated with planetary reducer.
With parking brake and optional freewheel.
AKD(Auto Kick Down)is optional.
Single speed model is optional.
Cross-reference:Mag-33VP-550F,MAG-33VP-650F,JMV-044,704C2K.
Technical Specification.
Specifications
Input Flow50 L/min
Motor Displacement34/19 cc/r
Working Pressure275 bar
2-Speed Switching Pressure20~70 bar
Ratio Options55
Max. Output Torque8100 N.m
Max. Output Speed48 rpm
Machine Application5.5~6.5 Ton
