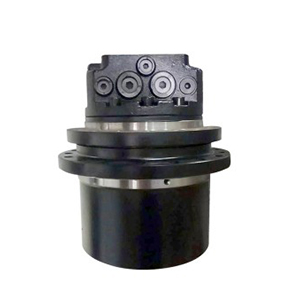

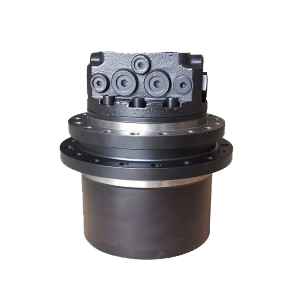

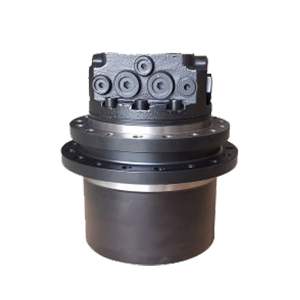

WTM03D Travel Motor

WEITAI WTM Series Final Drive is consisted of Swash-plate Piston Motor integrated with high strength planetary gearbox. It is widely used for Excavators, Drilling Rigs, Mining Equipment and other Crawler Equipment.

Key Features: 2-speed swash-plate piston motor.; Integrated with planetary reducer.; With parking brake and optional freewheel.; AKD(Auto Kick Down)is optional.; Single speed model is optional.; Cross-reference:PHV-3B,MAG-18V-350,JMV016(2),JMV023,701-2C2K,PTM-23/14.

GET QUOTES Download

Technical Specification.

Specifications

Input Flow	30 L/min	30 L/min	30 L/min	40 L/min	40 L/min
Motor Displacement	18/12 cc/r	18/10 cc/r	18/10 cc/r	23.2/15.4cc/r	23.2/15.4 cc/r
Working Pressure	210 bar	210 bar	210 bar	210 bar	210 bar
2-Speed Switching Pressure	20~70 bar	20~70 bar	20~70 bar	20~70 bar	20~70 bar
Ratio Options	48.6	53	42	48.6	53
Max. Output Torque	2900 N.m	3188 N.m	2520 N.m	3770 N.m	4100 N.m
Max. Output Speed	68.5 rpm	57 rpm	72 rpm	53.4 rpm	49 rpm
Machine Application	2.5~3.5 Ton	2.5~3.5 Ton	2.5~3.5 Ton	2.5~3.5 Ton	2.5~3.5 Ton
