WEITAI Hydraulic

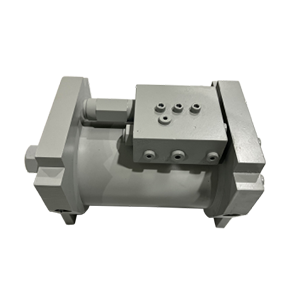

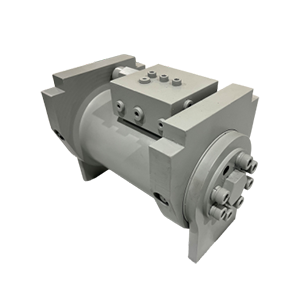

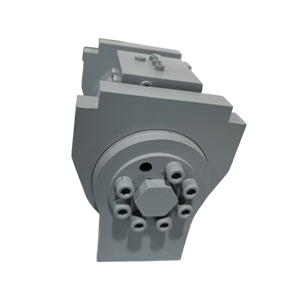

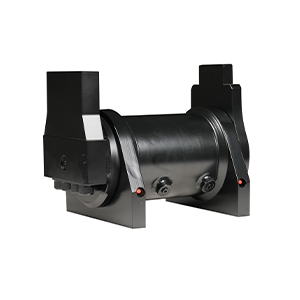

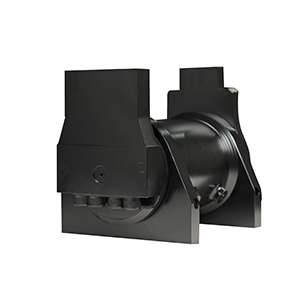

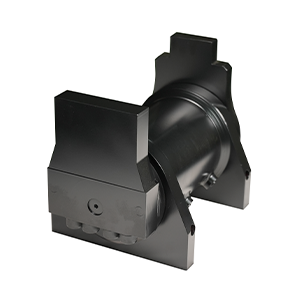

WPT Power Tilt
WEITAI Power tilt couplers are equipped with hydraulic cylinders that allow for automated tilting of the bucket or attachment. Operators can control the tilt angle using controls within the cab, providing precise and efficient adjustments.
Key Features
High torque up to 24,000Nm.
Angle of rotation up to 360°
Compact structure fits in tight spaces.
Suitable for harsh environments.
Multi mounting and connection available.
Interchangable Brands: HELAC, HKS, and MOVECO.
Technical Specification.
Specifications
Maximum Machine Weight /kg7000
Approximate Power Tilt Weight /kg96
Total Tilt180°
Driving Torque Nm@207bar4375
Holding Torque Nm@225bar14850
Required Oil Flow l/min13-38
Circuit Pressure Max207
Oil Passages for Quick Coupler2130
