WEITAI Hydraulic

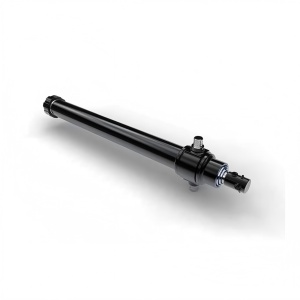

Inverted Telescopic Cylinder
WEITAI Hydraulic Cylinder is a mechanical actuator that is used to give a unidirectional force through a unidirectional stroke. It has many applications, notably in construction machinery, agricultrue machinery, and lifting machinery.
Key Features
Adopting Comprehensive simulation technology in R&D
In-house designed core components for reliable performance.
Automated production lines ensure consistent quality.
Complete and rigorous inspection process ensures component accuracy.
Customizable to meet your specific requirements.
Technical Specification.
Specifications

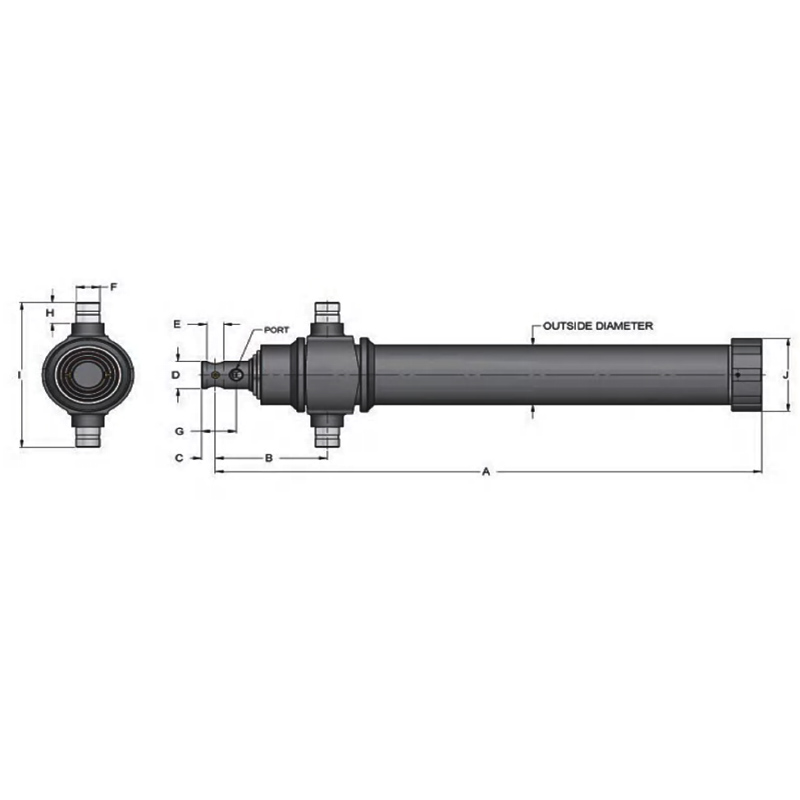

BORE &STROKE  DIMENSIONS

PIN

SIZE

PORTS

COLUMN LOAD(LBS)

PRESSURE(PSI)

RETRACTEDEXTENDED
1.5"X4"12"16"3/4"1/4NPT53003000
1.5"X6"14"20"53003000
1.5"X8"16"24"53003000
1.5"X10"18"28"53003000
1.5"X12"20"32"53003000
1.5"X14"22"36"53003000
1.5"X16"24"40"53003000
1.5"X18"26"44"48002750
1.5"X20"28"48"40002300
1.5"X24"32"56"30001700
