KEY TECHNICAL FEATURES

Internal Motor & Gearbox Structure

Features an axial piston motor and reduction gear built directly inside the drum, significantly reducing overall dimensions and installation space.

Counterbalance Safety Valve

Integrated counterbalance valve prevents load dropping and ensures smooth, controlled lowering even under dynamic load variations.

Internal Multi-Disc Parking Brake

Spring-applied, hydraulically released multi-disc wet brake provides dynamic holding security and emergency braking reliability.

High-Strength Structural Frame

Heavy-duty welded steel frame and reinforced drum built to withstand severe torsional and bending stress during maximum pull.

High-Efficiency Piston Motor

Delivers smooth starting torque, low noise operation, and high volumetric efficiency across full working pressure range().

Optional Rigidity Steel Wire Rope

Available with high-tensile, rotation-resistant steel wire rope tailored for specialized lifting requirements.

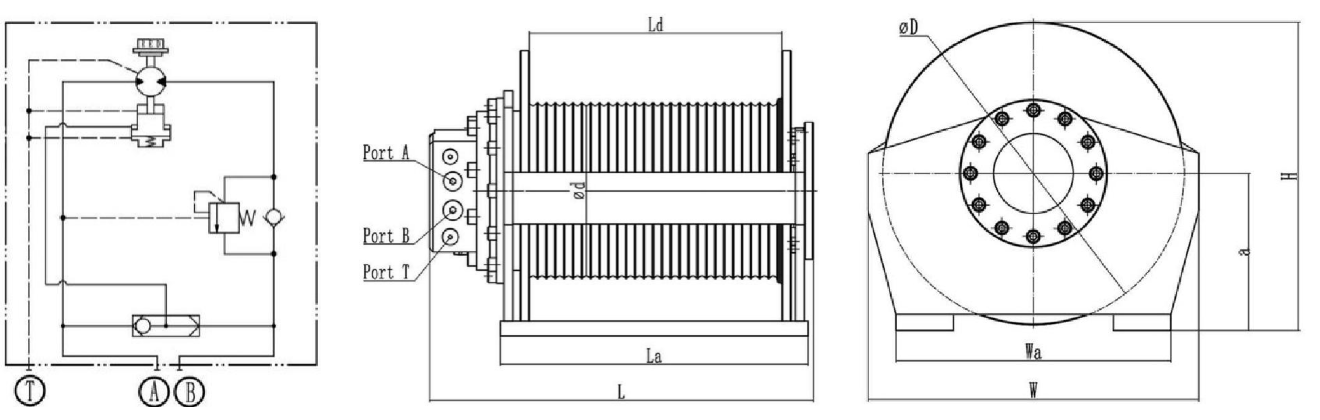

Specifications and Dimensions

Model No.	Unit	CHW-02	CHW-05	CHW-08	CHW-10	CHW-15	CHW-20	CHW-30
Motor displacement	mL/r	35	53	53	85	85	180	180
Max.working pressure	Mpa	27	27	27	30	30	30	30
Max.flow	L/min	70	100	100	170	170	320	320
Parking brake torque	N.m	300	400	400	800	800	1200	1200
Brake release pressure	MPa	3.3	3.3	3.3	3	3	3	3
Ratio	:1	21	28	48	45	65	55	85
Drum diameter(d)	mm	200	245	245	265	300	400	400
Drum length (ld)	mm	200	250	320	350	380	400	400
Rope diameter	mm	10	14	16	20	24	28	33
Max layers		4	5	5	5	5	5	5
Total rope length	M	60	80	100	100	100	120	120
Max.rope force	N	25000	42000	72000	108000	138400	187800	286800
Max.rope speed	M/min	50	50	30	35	28	38	25
Assembling space (LaxWa)	mm	315x330	320x345	390x395	430x425	450x500	480x600	480x650
Overall dimensions(LxWxH)	mm	400x400x380	400x415x390	470x435x410	550x480x460	550x530x530	580x670x660	580x720x720
Application weight	Ton	2	5	7	10	14	18	30

Frequently Asked Questions

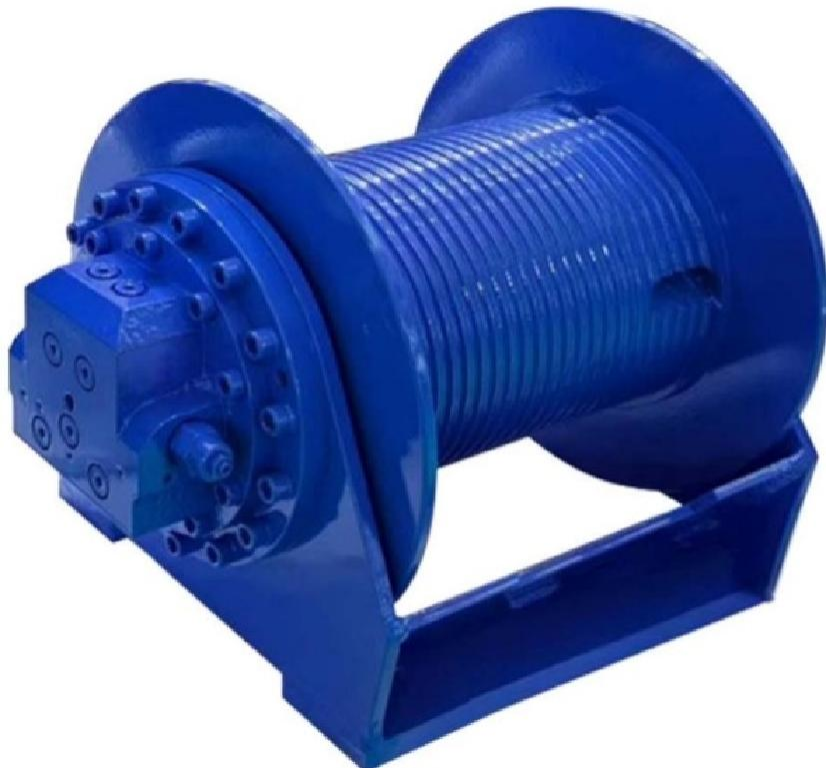

What is a compact hydraulic winch?

A compact hydraulic winch is a winching device powered by a hydraulic motor. The WEITAI CHW Series integrates an axial piston motor and reduction gear directly inside the drum to provide a compact configuration for towing and lifting applications.

What models are available in the WEITAI CHW Series?

The CHW Series includes seven models: CHW-02, CHW-05, CHW-08, CHW-10, CHW-15, CHW-20 and CHW-30. Each model has different hydraulic and dimensional specifications.

What is the maximum working pressure of the CHW Series?

According to the product brochure, the maximum working pressure is 27 MPa for CHW-02, CHW-05 and CHW-08, and 30 MPa for CHW-10, CHW-15, CHW-20 and CHW-30. Confirm the operating conditions and hydraulic system compatibility before selection.

Does the CHW Series include a braking system?

Yes. The product brochure specifies a multi-disc parking brake and a counterbalance valve as standard features across all models. The complete system must be designed and configured for the intended application.

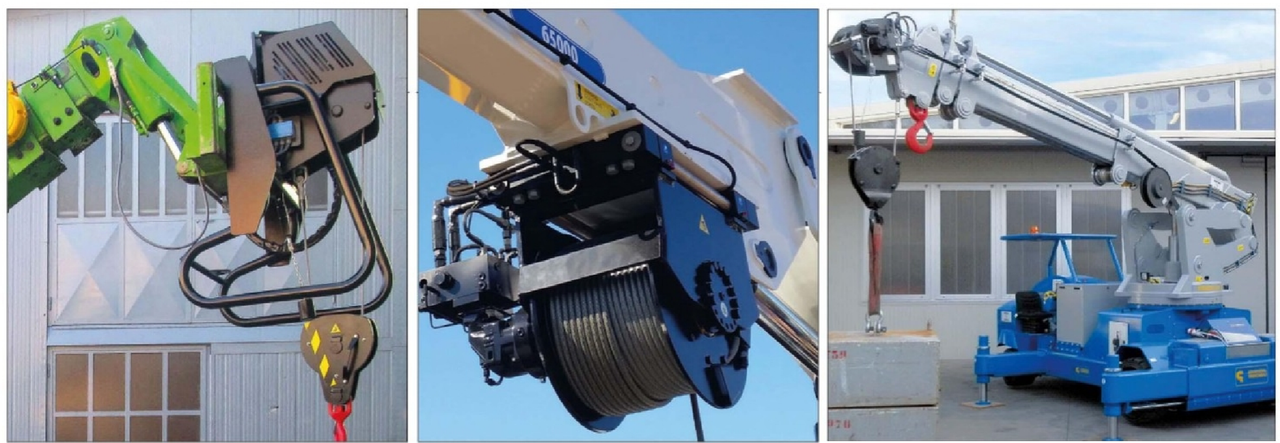

Can the compact hydraulic winch be installed inside equipment?

Yes. The brochure states that the winches can be installed directly within equipment or at another desired location. The final mounting arrangement must be verified against the applicable dimensions, interface and installation requirements.

Is steel wire rope included?

Steel wire rope is listed as an optional feature. Confirm rope specifications, supply scope and termination requirements when requesting a quotation.

How do I choose the right hydraulic winch model?

Start with the required line pull, rope speed, hydraulic working pressure, available flow, duty cycle, rope diameter, rope length and installation space. Provide these details to WEITAI for technical review and model selection.

How can I request a quotation for the CHW Series?

Submit your preferred model, equipment application, hydraulic parameters, estimated quantity and target delivery location through the inquiry form. If you are unsure which model to select, submit your equipment details for a technical consultation.
